Speedy. Durable. Accurate.

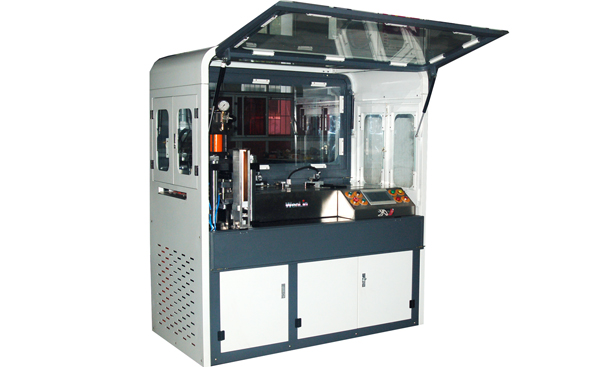

WENLIN-HS-5A/4A/3A Automatic High Speed Hydraulic Punching Machine adopts PLC industrial automation control.High precision ball screw and linear guide rail, moving smoothly and moving distance accurately.It adopts the imported professional high sensitivity photoelectric identification device to read the positioning mark, the positioning is accurate and reliable.The die is made of high quality die steel, the edge of blanking products is smooth.
The machine can be set 8 cards into different step distance. There are different feeding and punching methods for flexible choices , such as three dies, four dies and five dies. This machine is equipped with dustcoat to keep the machine clean and ensure the safety of the operation person.
Model WENLIN-HS-3A/4A/5A (Hydraulic) Layout 3×7/3×8/4×7/5×5 Number of the Punches 3/4/5 Max. Punching Strength 0-5000 kg Adjustable Punching Method Hydraulic Motor Air Source 0.6 MPa
100 L/min Power Source AC380V 60Hz Power 4.5KW Controlling Method PLC Productivity 8000-12000 cards/hour Machine dimension 1520(L)×870(W)×1850(H)mm G.W. About 1000KGS
