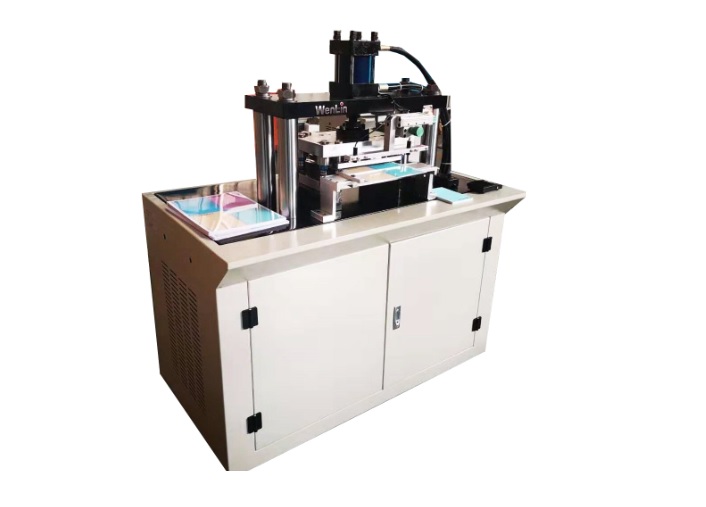

WENLIN double die hydraulic punching machine,easy to operate
WENLIN-HS-2/3/4/5F Newly enlarged style
Double die hydraulic punching machine
Specification: International standard size of credit card (85.7×54mm),
other size molds can be customized
Application: Suitable for punching A4 or A3 and above A3 sizes of PVC, PC, PS, PET, PETG, ABS and other plastic sheet materials.
Wenlin-HS-2/3/4/5F is enlarged photoelectric para double-die punching machine. the previous machine is Inconvenience and 10 layout punching quality is poor, durability and unreliable, this newly machine overcomed the disadvantages of previous machine. It can be comparable to the professional high speed card punching machine.
It adopts hydraulic power punching method, using the auxiliary photoelectric center positioning which is accurate in positioning and fast in speed.Equipped with high quality imported mould which is easy to change, the whole machine is safe and reliable.Suitable for punching PVC, PC, PS, PET, PETG, ABS and other plastic sheet materials on A4 size.The punching effect can be comparable to the automatic high speed multi-mold punching machine. It without cutting, direct punching.Special card mold can be customized :100*70mm 120*80mm, 130*90mm, 140*100mm, round 20mm, etc.
1. Using hydraulic power punching method, the impulse is big, the fault is less,high impact and few breakdowns
2. Centerline positioning design, positioning multiple punching sheets at one time
3. Using the auxiliary photoelectric center positioning which is accurate in positioning and fast in speed
4. Convenient to push and charge materials
5. Low maintenance cost
Model: WENLIN-HS-2/3/4/5F newly enlarged double die punching machine
Punching size: International standard size of credit card ( 85.7×54mm),other size molds can be customized
Card material size: 210 mm×297 mm，297mm×420mm
Punching thickness: 0.3 mm－1.2mm
Punching method: hydraulic
Punching action: Continuous
Power supply: 220V AC 50HZ
Output : 3000 cards per hour
Machine Dimension: L1260mm *W570mm *H1530mm
Gross weight: 350kg
