PLC control high precision

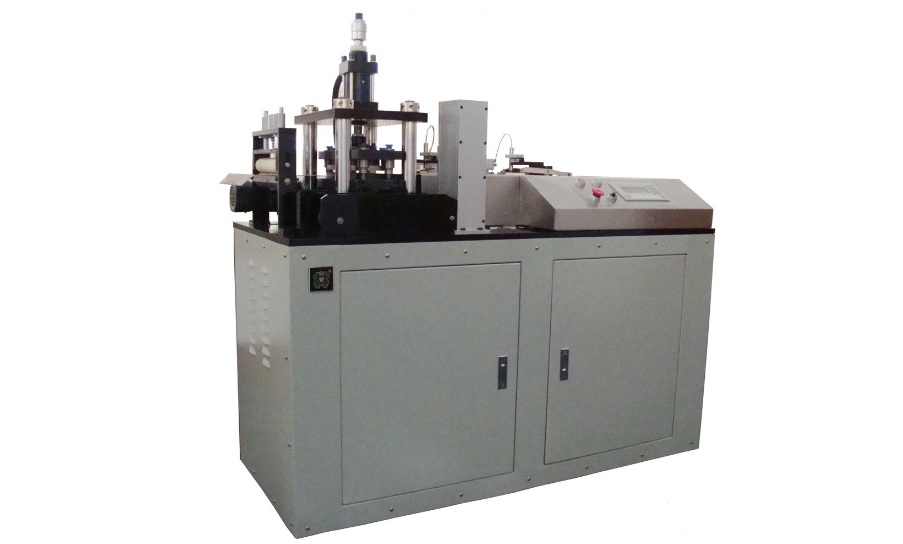

WENLIN-HS-2A High speed automatic card punching machine
Personalized card punching machine
Specification:International standard size for credit cards( 85.7×54mm)
Application: Wenlin-HS-2A PVC IC ID card punch machine suitable for punching PVC, ABS and other materials of A4 size. This card puncher can be used for cutting various kinds of smart cards such as loyalty cards/ membership card /reward card / library card /VIP card / calendar card/key card hotel access card/ bank and financial card/privilege card.
Wenlin-HS-2A high speed automatic card punching machine is a best seller of PVC card die cutter, which adopts PLC control man-machine interface.The feeding system of this card puncher adopts imported servo motor, imported high-precision ball screw and linear guide rail, with smooth movement and accurate movement distance.Make positioning accuracy less than 0.10mm.
Wenlin-HS-2A card cutting machine use professional high sensitivity photoelectric identification device to read the positioning mark, positioning accurate and reliable.Imported hydraulic pump, low noise, large flow.Hydraulic cylinder, smooth punching and cutting, low noise.The mould is made of imported die steel.Strong software function, material deformation or mechanical wear can ensure the accuracy of punching.The punching speed is 30% higher than similar products.Double die for punching and cutting, suitable for small and medium card factory.
Product Modle: WENLIN-HS-2A High speed automatic card punching machine
Punching Size: International standard size for credit cards( 85.7×54mm)
Card Material Size: 210 mm×297 mm
Applicable Materials: 0.3~1.0mm PVC or other plastic materials
Punching Layout: 2*5
Maximum Impact Force: 0 ~ 5000 kg Adjustable
Cylinder Stroke: 18mm
Capacity of Oil Tank: 120 L
Air Supply: 0.6 MPa
Air Consumption: 100 L/min
Power Supply: AC380V / 220 v Optional 50/60 hz
Control Method: PLC
Output: 5000 cards/hour
Dimension: L1350mm *W600mm *H1300mm
