High speed efficiency, perfect performance, excellent quality, auto separating

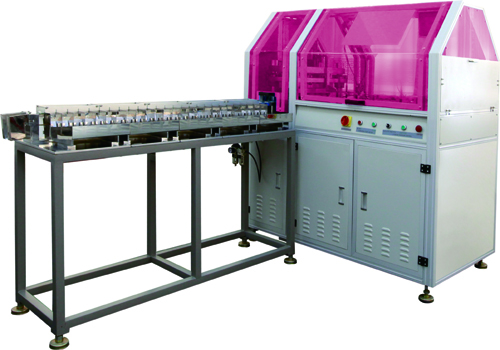

WL-HS-25 Automatic Punching Machine adopts PLC industrial automation controlling and oil-cylinder-style hydraulic punch for the punching power.Professional High sensitivity photoelectric recognition device reads the position marks for precise positioning. It is suitable for punching any materials of combining various patterns and different contents.
The punching machine has multiple card collecting boxes and can collect the cards separately to avoid making mistakes, reduce manual card separation and decrease card cost.
● Using friendly PLC industrial automation controlling system with self diagnostic prompts
and modem interface facility
Suitable for PVC、ABS、PET、PETG、paper card、mixed material of PVC and ABS ,etc.
Layout 5 x 5
Number of Punches 5
Max. Punching Strength 0-5000 kg adjustable
Hydro-cylinder Travel 18mm
Hydraulic Oil Tank Volume 120L
Air Source 6 kg/cm(without water)
Air Consumption 85 L/min
Power Source AC 380V 50Hz
Controlling Method PLC + servo system
Punching Precision ±0.10mm
