WENLIN-FA5200SR-8 NEW LAMINATING MACHINE

WENLIN-FA5200SR-8 NEW LAMINATING MACHINE

IC ID PVC CARD MAKING MACHINE


Brand:WENLIN



Specifications:420mm×520mm



Application range:A3+ laminating platen, High efficienct to laminate film on various kinds of plastic cards, such as RFID tag, IC,ID inlay cards,second generation ID cards and other superior cards,bank cards,bus cards,highway cards,social security cards,etc. Wenlin is professional Card Equipment Manufacturer. Card Equipment Manufacturer.

Close

·Product introduction

WENLIN WENLIN-FA5200SR-8 new generation laminating machine

★PLC industrial automation control;

★PID self-setting function, keep the uniformity of temperature;

★International HROA standard cylinders with diameter of 220mm;

 High quality and high precise aluminum alloy,which adopted for fast heating of hot tower & non-rusty cold tower;

Humanized operation with automatic high and low pressure oil return,automatic pressure relief, manual pressure relief;

Photoelectric switches are adopted to realize tiny pressure lamination and multilevel pressure control, which reduce chip rejection rate effectively;

Eight layers, higher productivity;

·Technical parameter

Model

WENLIN-FA5200SR-8 card laminator




Control Method

PLC




Cooling Method

Water Cooling




Heating Method

Electric Heating




Pressure Stages

Heating 12 stages/cooling 5 stages




Pressure Precision

(0-16)Mpa ±0.1Mpa






Temperature Precision

0-200℃    士2(℃)




Laminating Plate

Aluminum Alloy




Hydraulic Cylinder




Platen Size

420mm×520mm




Laminating Size

400mm×500mm




Opening

8




Opening Space

45mm




Plate thickness

28mm




Electric

380V ,50HZ, 28 KW

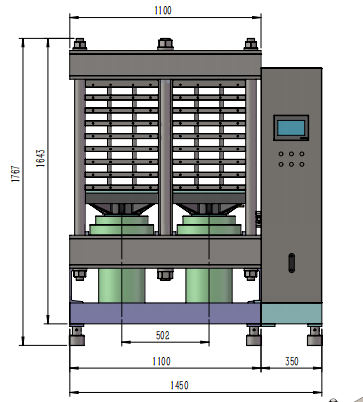

Dimension

L1460mm×W660mm×H1757mm




Weight

2,300 KGS





·Video
