Brand：WENLIN
Specifications：CA-02
Application range:The industrial chiller is widely used in plastic, electronic manufacturing, electroplating, pharmaceutical and chemical industry, ultrasonic cooling, printing and other industrial production.

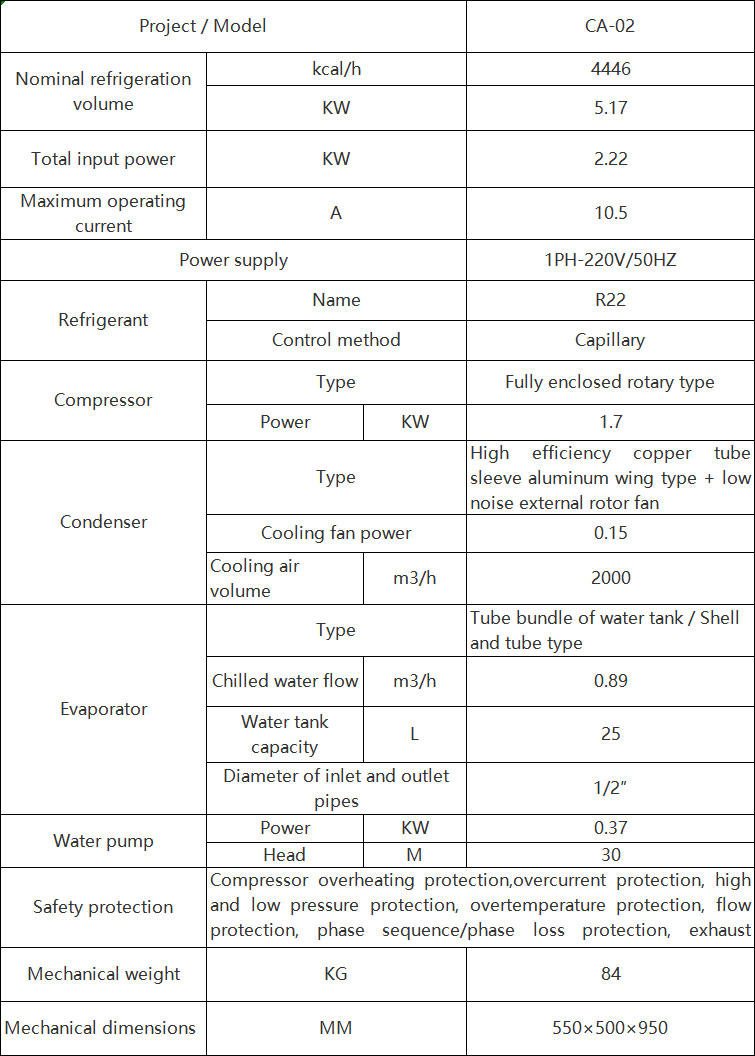

| Project/Model | CA-02 | ||
| Nominal refrigeration volume | kcal/h | 4446 | |
| KW | 5.17 | ||
| Total input power | KW | 2.22 | |
| Maximum operating current | A | 10.5 | |
| Power supply | 1PH-220V/50HZ | ||
| Refrigerant | Name | R22 | |
| Control method | Capillary | ||
| Compressor | Type | Fully enclosed rotary type | |
| Power | KW | 1.7 | |
| Condenser | Type | igh efficiency copper tube sleeve aluminum wing type + low noise external rotor fan | |
| Cooling fan power | 0.15 | ||
| Cooling air volume | m3/h | 2000 | |
| Evaporator | Type | Tube bundle of water tank / Shell and tube type | |
| Chilled water flow | m3/h | 0.89 | |
| Water tank capacity | L | 25 | |
| Diameter of inlet and outlet pipes | 1/2″ | ||
| Water pump | Power | KW | 0.37 |
| Head | M | 30 | |
| Safety protection | Compressor overheating protection, overcurrent protection, high and low pressure protection, overtemperature protection, flow protection, phase sequence/phase loss protection, exhaust overheat protection. | ||
| Mechanical weight | KG | 84 | |
| Mechanical dimensions | MM | 550×500×950 | |
Note: The cooling capacity is based on: the frozen water outlet temperature is 7℃, and the dry ball temperature is 35℃ ( GB/T18430.1-2007 nominal condition temperature condition).
Working range: temperature range 5℃ to 35℃;
Temperature difference between inlet and outlet of chilled water: 3℃ to 8℃;
Use in a condensation temperature not higher than 35℃;
Temperature difference between frozen water inlet and outlet water: 3℃ to 8℃.
